| お支払い方法の種類: | T/T,Paypal |
| インコタームズ: | FOB,CFR,CIF,EXW,DDU |
| 最小注文数: | 1 Kilogram |
| 輸送方法: | Ocean,Land,Air,Express |
| ポート: | Shenzhen,Guangzhou,Hongkong |
モデル: Vespel Sheet Rod
ブランド: ホニプラス
| 販売単位 | : | Kilogram |
| パッケージ型式 | : | エクスポートパッケージ |
The file is encrypted. Please fill in the following information to continue accessing it
320 x320mm幅と長さ、最小厚さ2mmまで最大厚さ60の厚さまでんん

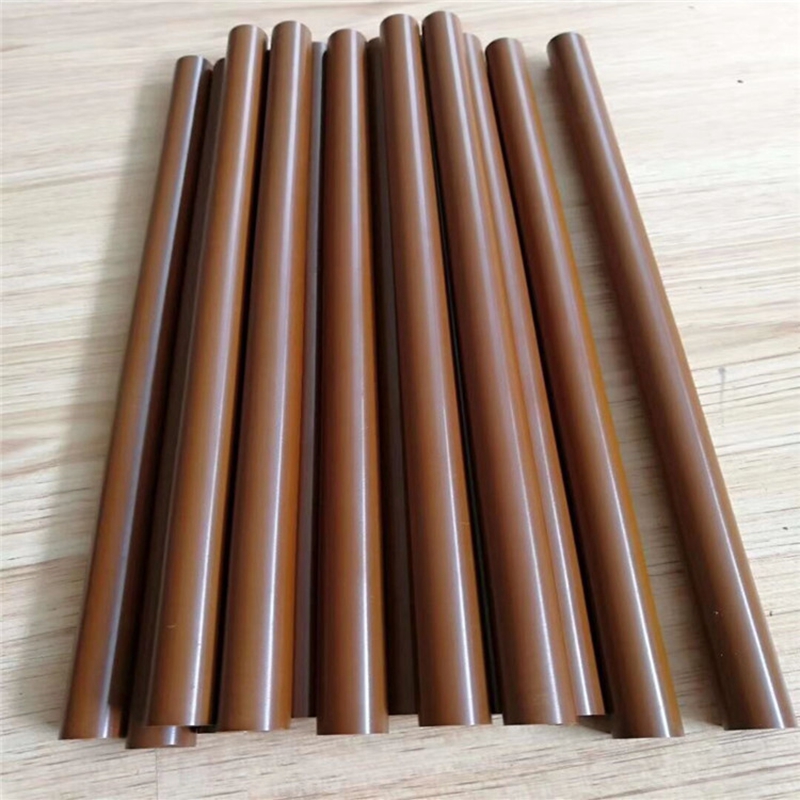

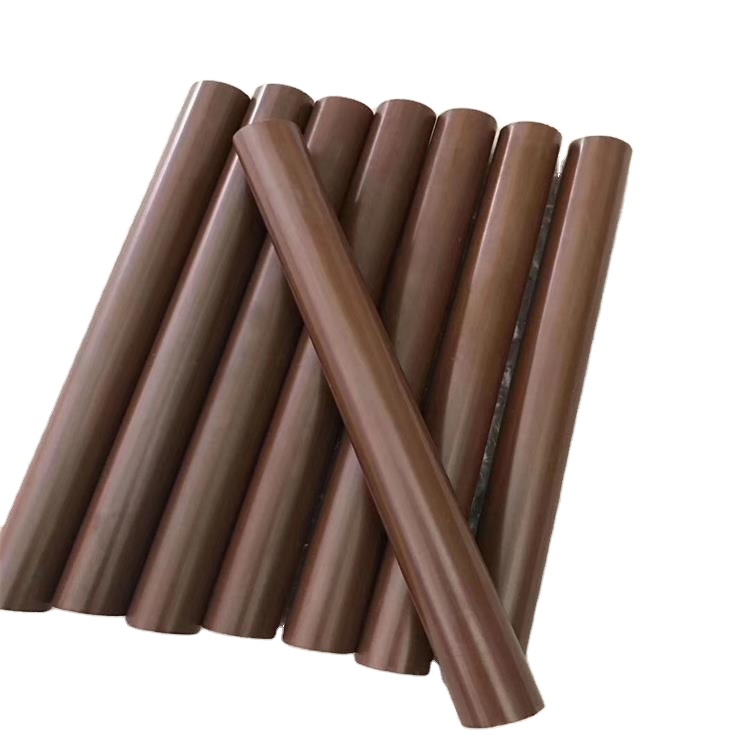

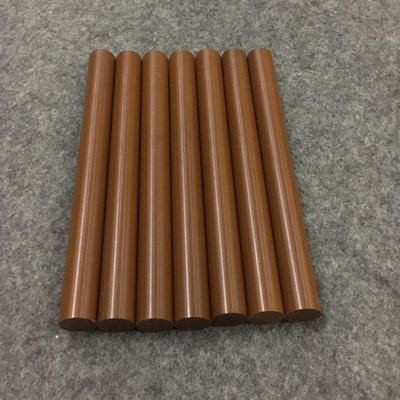

| PI – Polyimide | |||||
| Polyimide (PI) is a non melting high temperature polymer. Strength, dimensional stability, and creep resistance remain high even at temperatures above 360°C | |||||
| Properties | Temperature | Test Standard or Instrument | Unit | PI-N | PI-G15 |
| Physical Properties | |||||
| Color | – | – | – | Brown | Black |
| Density | – | GB1033 | g/cm³ | 1.38-1.42 | 1.42-1.45 |
| Mechanical Properties | |||||
| Tensile Strength | 23℃ | GB/T1040-2006 | Mpa | 85 | 89 |
| 260℃ | 49.4 | 54 | |||
| Elongation at Break | 23℃ | GB/T1040-2006 | % | 6.3 | 3.7 |
| 260℃ | – | – | |||
| Tensile Modulus | 23℃ | GB/T1040-2006 | Mpa | 3140 | 4400 |
| 260℃ | – | – | |||
| Flexural Strength | 23℃ | GB/T1040-2000 | Mpa | 110 | 137 |
| 260℃ | 60 | 99 | |||
| Flexural Modulus | 23℃ | GB/T1040-2000 | Mpa | 2990 | 4500 |
| 260℃ | 1640 | 3000 | |||
| Compress Strength | 23℃ | GB/T1040-2000 | Mpa | 135 | 124 |
| 260℃ | 83.8 | 100 | |||
| Compress Modulus | 23℃ | GB/T1040-2000 | Mpa | 1620 | 1600 |
| 260℃ | 1410 | 1400 | |||
| lzod Unotched Impact Strength | 23℃ | GB/T16420-1996 | Kj/m2 | 83.2 | 45 |
| 260℃ | – | – | |||
| Thermal Properties | |||||
| Coefficient of Linear Expansion | 296-573K | μm/m/°C | 53 | 49 | |
| Deflection Temperature | GB/T 1634.2 | ℃ | >360 | >360 | |
| Electrical Properties | |||||
| Surface Resistvity | GB1410 | Ω | 1014 | – | |
| Volume Resistvity | GB1410 | Ω.cm | 1015 | – | |
| Dielectric Strength | – | KV/mm | 22 | – | |
| Dielectric Constant | – | – | 3.6 | – | |
| NOTE: *The data stated above are typical values intended for reference and comparison purposes only. *The data should not be used as a basis for design specifications or quality control. *The information is provided as a guide to the best of our knowledge and given without obligation or liability. *Testing under individual application circumstances is recommended. | |||||
| * PI-N, Natural (Unfilled) PI | |||||
| * PI-G15, 15% Graphite Filled PI | |||||
