モデル: SUSTAPEI GF 30 (ULTEM™ 2300)
ブランド: サステペイ
| 販売単位 | : | Kilogram |
| パッケージ型式 | : | エクスポートパッケージ |
The file is encrypted. Please fill in the following information to continue accessing it

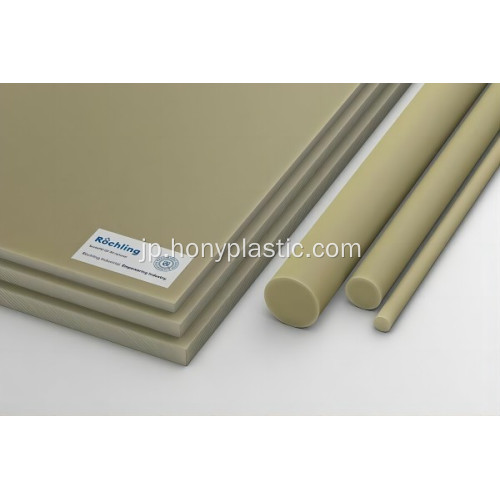

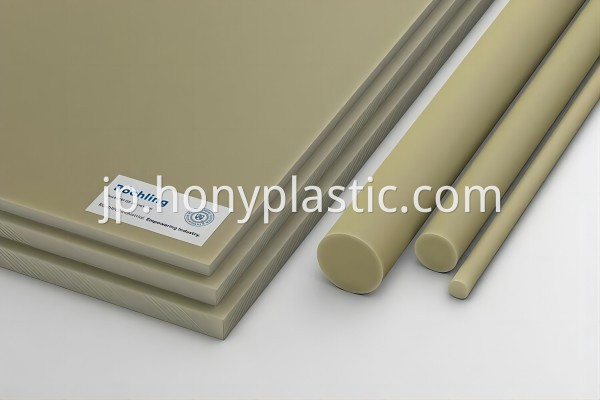

Sustapei GF 30（Ultem™2300）は30％のガラス強化であり、構造用途の剛性、強度、および寸法の安定性を高めます。
特性
高熱偏向温度
高炎遅延剤
非常に低い煙の発達
非常に高い剛性、引張強度、幅が広い温度範囲にわたって硬さ
熱の下での高次元の安定性
キープロパティ
未使用のPEIよりも高いHDT
未充填のPEIよりも高い強度と剛性
制限
有機溶媒と芳香族炭化水素に対する耐薬品性（多くのオイル、燃料、グリースを含む）
アプリケーション
流体処理マニホールドとコネクタ
電子 /電気絶縁体
分析機器
医療機器
航空機コンポーネント
半導体成分
Sustapei GF 30Ultem®2300のYpical特性
| Description | Value | ||
| Material Type | Amorphous Thermoplastic | ||
| Chemical Name | PEI Polyetherimide | ||
| Trade Name | SustaPEI GF 30 | ||
| Additives | 30% Glass | ||
| Color | Tan | ||
| Manufacturer | Rochling | ||
| PHYSICAL | |||
| Property | Test | Unit of Measure | Value |
| Density | ASTM D792 | g/cm³ | 1.51 |
| ASTM D792 | lb/in³ | 0.055 | |
| Water Absorption, 24 hrs, Immersion | ASTM D570 | % by wt. | 0.2 |
| Water Absorption, Saturation, Immersion | ASTM D570 | % by wt. | 1.2 |
| MECHANICAL | |||
| Property | Test | Unit of Measure | Value |
| Tensile Strength | ASTM D638 | psi | 20,000 |
| Tensile Modulus | ASTM D638 | psi | 900,000 |
| Tensile Elongation at Break | ASTM D638 | % | 3 |
| Flexural Strength | ASTM D790 | psi | 33,000 |
| Flexural Modulus | ASTM D790 | psi | 950,000 |
| Compressive Strength | ASTM D695 | psi | 31,000 |
| Hardness | ASTM D785 | NA | Rockwell M115 |
| IZOD Impact-Notched | ASTM D256 | ft-lb/in | 1 |
| Dynamic Coefficient of Friction | NA | 0.24 | |
| THERMAL | |||
| Property | Test | Unit of Measure | Value |
| Coefficient of Linear Thermal Expansion | ASTM D696 | x 10-5 in./in./°F | 1.1 |
| Heat Deflection Temp | ASTM D648 | °C at 264 psi | 210 |
| ASTM D648 | °F at 264 psi | 410 | |
| Melting Point Temp | ASTM D3418 | °C | 228 |
| ASTM D3418 | °F | 442 | |
| Max Continuous Operating Temp | °C | 171 | |
| °F | 340 | ||
| Minimum Operating Temp | °C | -50 | |
| °F | -58 | ||
| Thermal Conductivity | ASTM C117 | BTU-in/ft²-hr-°F | 1.8 |
| Flammability Rating | UL94 | NA | V-0 |
| ELECTRICAL | |||
| Property | Test | Unit of Measure | Value |
| Dielectric Strength | ASTM D149 | V/mil | 770 |
| Dielectric Constant at 1 MHz | ASTM D150 | NA | 3.7 |
| Dissipation Factor at 1 MHz | ASTM D150 | NA | 0.002 |
| Surface Resistivity | ASTM D257 | ohm/square | 10^16 |
