モデル: Duratron ®U 2200 PEI
ブランド: デュラトロン
| 販売単位 | : | Kilogram |
| パッケージ型式 | : | エクスポートパッケージ |
The file is encrypted. Please fill in the following information to continue accessing it
Duratron®U2200PEIポリエーテルイミイド形状は20％のガラス強化であり、並外れた剛性と寸法安定性、高温抵抗、および線形熱膨張の低い係数を与えます。並外れた強度と重量の比率と引張強度の増加により、このグレードは半導体および電子機器のアプリケーションにも優れた電気絶縁体です。
材料特性
20％ガラス強化
高強度と340°F（170°C）まで継続的に使用されます
例外的な剛性と寸法の安定性
低係数線形熱膨張（CLTE）
利用可能なジオメトリ

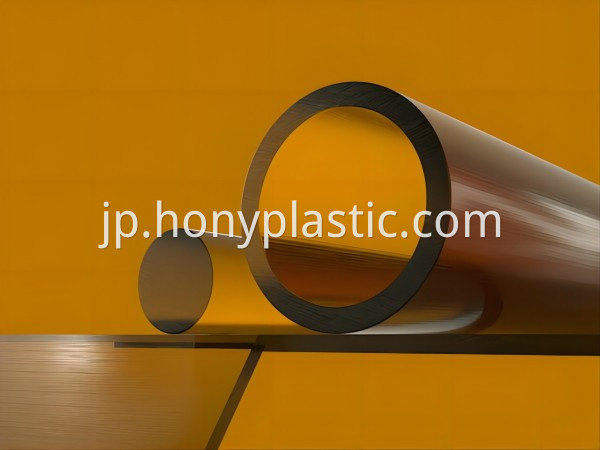

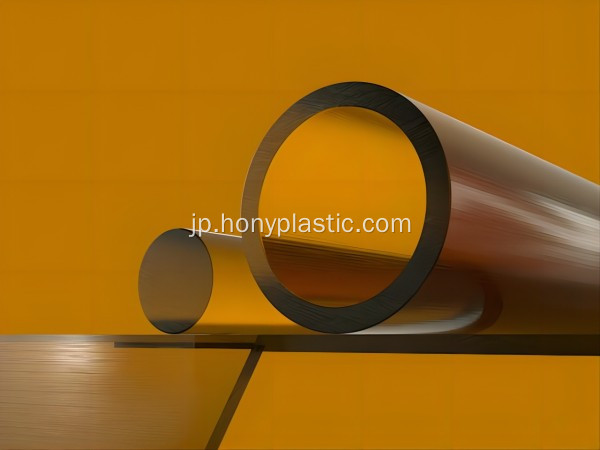

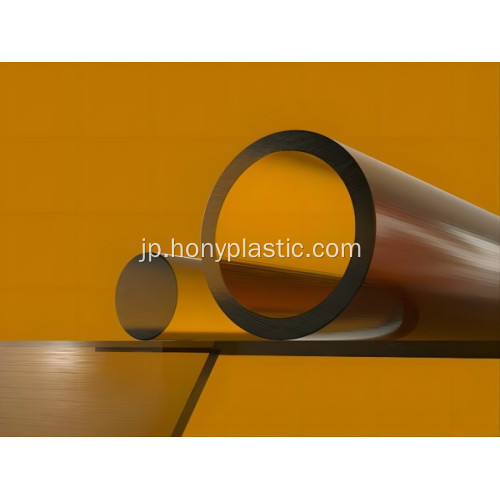

Duratron®U2200PEIストックシェイプは、次のジオメトリのさまざまな標準サイズを網羅しています：ロッド、プレート
利用可能な色
duratron®U2200PEIストックシェイプは次の色で提供されます：茶色
Duratron®U2200PEI20％ガラスの典型的な特性
| DETAIL | |||
| Description | Value | ||
| Material Type | Imidized Amorphous Thermoplastic | ||
| Chemical Name | PEI Polyetherimide | ||
| Trade Name | Duratron®U2200 | ||
| Additives | 20 Glass | ||
| Color | Tan | ||
| Manufacturer | Mitsubishi Chemical Advanced Materials | ||
| PHYSICAL | |||
| Property | Test | Unit of Measure | Value |
| Density | ASTM D792 | g/cm³ | 1.42 |
| ASTM D792 | lb/in³ | 0.051 | |
| Water Absorption, 24 hrs, Immersion | ASTM D570 | % by wt. | 0.19 |
| Water Absorption, Saturation, Immersion | ASTM D570 | % by wt. | 1.1 |
| MECHANICAL | |||
| Property | Test | Unit of Measure | Value |
| Tensile Strength | ASTM D638 | psi | 16900 |
| Tensile Modulus | ASTM D638 | psi | 700000 |
| Tensile Elongation at Break | ASTM D638 | % | 3 |
| Flexural Strength | ASTM D790 | psi | 25000 |
| Flexural Modulus | ASTM D790 | psi | - |
| Compressive Strength | ASTM D695 | psi | 28000 |
| Hardness | ASTM D785 | NA | Rockwell M114 / R127 |
| IZOD Impact-Notched | ASTM D256 | ft-lb/in | 0.8 |
| THERMAL | |||
| Property | Test | Unit of Measure | Value |
| Coefficient of Linear Thermal Expansion | ASTM D696 | x 10-5 in./in./°F | 1.4 |
| Heat Deflection Temp | ASTM D648 | °C at 264 psi | 208 |
| ASTM D648 | °F at 264 psi | 408 | |
| Max Continuous Operating Temp | °C | 171 | |
| °F | 340 | ||
| Minimum Operating Temp | °C | -50 | |
| °F | -58 | ||
| Thermal Conductivity | ASTM C117 | BTU-in/ft²-hr-°F | 1.43 |
| Flammability Rating | UL94 | NA | V-0 |
| ELECTRICAL | |||
| Property | Test | Unit of Measure | Value |
| Dielectric Constant at 1 MHz | ASTM D150 | NA | - |
| Dissipation Factor at 1 MHz | ASTM D150 | NA | 0.0015 |
| Surface Resistivity | EOS/ESD S11.11 | ohm/square | > 10^13 |
