モデル: Rexolite®1422
ブランド: rexolite
原産地: アメリカ
| 販売単位 | : | Piece/Pieces |
| パッケージ型式 | : | 輸出カートンパレット |
| ダウンロード | : |
|
The file is encrypted. Please fill in the following information to continue accessing it

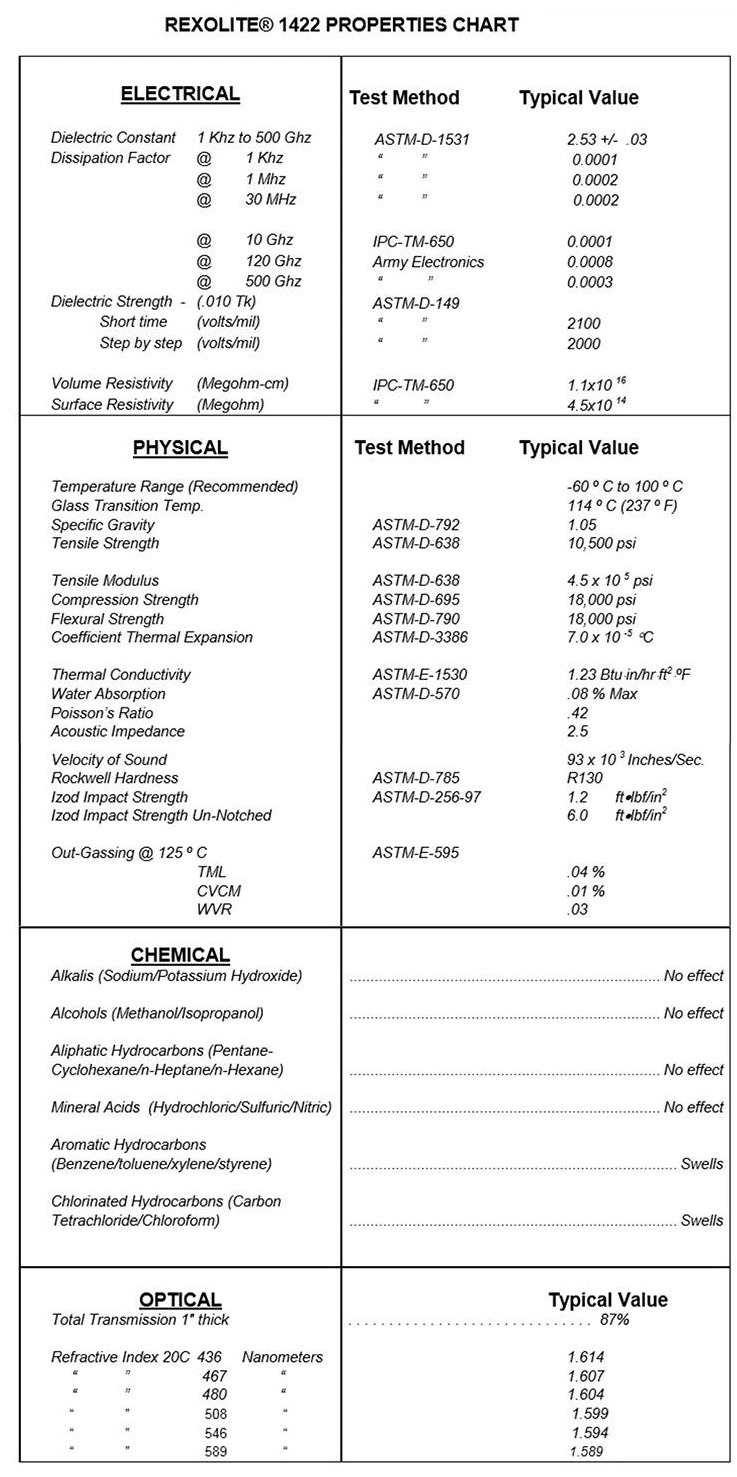

Rexolite®は、C-LEC Plastics Incによって製造されたユニークな架橋ポリスチレン、マイクロ波プラスチックです。この材料の最も注目すべき特性は、Giga-Hertz周波数範囲に安定した電気特性です。また、光学的に透明で、磨かれたときにわずかな黄色のキャスト（アクリルとほぼ同じ）、寸法的に安定しており、優れたサウンド伝送特性を備えています。その結果、Rexolite®は、高周波回路基板、マイクロ波成分、および音響、光学、無線周波数のアプリケーションを備えたレンズによく使用されます。
rexolite®1422シートサイズ
| Thickness (Inch) | Thickness(mm) | Length(mm) | LBS/SQ.FT | KG/㎡ |
| 0.010 | 0.254 |
610 x 610 |
|
|
| 0.015 | 0.381 |
|
|
|
| 0.020 | 0.508 |
|
|
|
| 0.031 | 0.787 |
305 x 305 305 x 610 610 x 610 610 x 1220 915 x 915 |
0.17 | 0.831 |
| 0.046 | 1.168 | 0.26 | 1.270 | |
| 0.062 | 1.575 | 0.34 | 1.661 | |
| 0.093 | 2.362 | 0.51 | 2.492 | |
| 0.125 | 3.175 | 0.68 | 3.322 | |
| 0.187 | 4.750 | 1.02 | 4.984 | |
| 0.250 | 6.350 | 1.36 | 6.645 | |
| 0.375 | 9.525 | 2.05 | 10.016 | |
| 0.500 | 12.700 | 2.72 | 13.290 | |
| 0.625 | 15.875 | 3.41 | 16.661 | |
| 0.750 | 19.050 | 4.10 | 20.032 | |
| 1.000 | 25.400 | 5.40 | 26.384 | |
| 1.250 | 31.750 | 6.80 | 33.224 | |
| 1.500 | 38.100 | 8.20 | 40.065 | |
| 2.000 | 50.800 | 10.90 | 53.257 | |
| 2.500 | 63.500 | 14.00 | 68.403 | |
| 3.000 | 76.200 | 16.00 | 78.175 | |
| 3.500 | 88.900 | 19.00 | 92.833 | |
| 4.000 | 101.600 | 22.00 | 107.491 | |
| 5.000 | 127.000 | 27.00 | 131.921 | |
| 6.000 | 152.400 | 33.00 | 161.236 |
rexolite®1422ロッドサイズ
| Diameter(Inch) | Diameter(Inch) | Diameter（mm） | Length(mm) | LBS/FT | KG/m |
| 1/16" | 0.062 | 1.575 |
1220 1830 2440 3660 |
0.001 | 0.002 |
| 3/32" | 0.093 | 2.362 | 0.003 | 0.005 | |
| 1/8" | 0.125 | 3.175 | 0.006 | 0.008 | |
| 5/32" | 0.156 | 3.962 | 0.009 | 0.013 | |
| 3/16" | 0.187 | 4.750 | 0.013 | 0.019 | |
| 1/4" | 0.250 | 6.350 | 0.022 | 0.033 | |
| 9/32" | 0.281 | 7.137 | 0.028 | 0.042 | |
| 5/16" | 0.312 | 7.925 | 0.035 | 0.052 | |
| 3/8" | 0.375 | 9.525 | 0.050 | 0.074 | |
| 7/16" | 0.437 | 11.100 | 0.068 | 0.101 | |
| 1/2" | 0.500 | 12.700 | 0.089 | 0.132 | |
| 9/16" | 0.562 | 14.275 | 0.110 | 0.164 | |
| 5/8" | 0.625 | 15.875 | 0.140 | 0.208 | |
| 3/4" | 0.750 | 19.050 | 0.200 | 0.298 | |
| 7/8" | 0.875 | 22.225 | 0.270 | 0.402 | |
| 1" | 1.000 | 25.400 | 0.350 | 0.521 | |
| 1-1/8" | 1.125 | 28.575 | 0.450 | 0.670 | |
| 1-1/4" | 1.250 | 31.750 | 0.550 | 0.819 | |
| 1-3/8" | 1.375 | 34.925 | 0.670 | 0.997 | |
| 1-1/2" | 1.500 | 38.100 | 0.790 | 1.176 | |
| 1-5/8" | 1.625 | 41.275 |
1220 2440 |
0.940 | 1.399 |
| 1-3/4" | 1.750 | 44.450 | 1.080 | 1.608 | |
| 1-7/8" | 1.875 | 47.625 | 1.250 | 1.861 | |
| 2" | 2.000 | 50.800 | 1.420 | 2.114 | |
| 2-1/4" | 2.250 | 57.150 | 1.800 | 2.679 | |
| 2-1/2" | 2.500 | 63.500 | 2.210 | 3.290 | |
| 2-3/4" | 2.750 | 69.850 |
306 610 915 1220 |
2.700 | 4.019 |
| 3" | 3.000 | 76.200 | 3.200 | 4.763 | |
| 3-1/4" | 3.250 | 82.550 | 3.700 | 5.508 | |
| 3-1/2" | 3.500 | 88.900 | 4.400 | 6.550 | |
| 3-3/4" | 3.750 | 95.250 | 5.000 | 7.443 | |
| 4" | 4.000 | 101.600 | 5.700 | 8.485 | |
| 4-1/4" | 4.250 | 107.950 | 6.400 | 9.527 | |
| 4-1/2" | 4.500 | 114.300 | 7.200 | 10.717 | |
| 4-3/4" | 4.750 | 120.650 | 8.000 | 11.908 | |
| 5" | 5.000 | 127.000 | 8.900 | 13.248 | |
| 5-1/2" | 5.500 | 139.700 | 10.700 | 15.927 | |
| 6" | 6.000 | 152.400 | 12.700 | 18.904 | |
| 7" | 7.000 | 177.800 | 17.500 | 26.049 | |
| 8" | 8.000 | 203.200 |
305 610 915 |
22.900 | 34.087 |
