| お支払い方法の種類: | T/T,Paypal |
| インコタームズ: | FOB,CIF,EXW,DDU,DDP |
| 最小注文数: | 1 Kilogram |
| 輸送方法: | Ocean,Land,Air,Express |
| ポート: | SHENZHEN,HONGKONG,GUANGZHOU |
モデル: HONY-POM
ブランド: ホニー
Color: White,Black, other colors
密度: 1.5g/cm3
Working Temperature: -50℃--110℃
厚さ: 0.5-----120mm, 0.5--200mm
応用: used to produce gears, springs, bearings, connecting rod
Sample: Available
Material: POM (Polyoxymethylene, Polyacetal, Delrin)
| 販売単位 | : | Kilogram |
| パッケージ型式 | : | 輸出カートン |
The file is encrypted. Please fill in the following information to continue accessing it
hony® POMには、優れた機械的特性と剛性があり、金属材料に近い。銅、鋳造亜鉛、鋼、アルミニウム、その他の金属材料の理想的な交換材料です。優れた疲労抵抗とクリープ抵抗。良好な耐摩耗性、自己潤滑および摩擦。高い熱安定性、良好な化学的安定性、優れた電気断熱。また、-50 〜110〜 +110の範囲の温度で使用できます。 POM（ポリオキシメチレン、多酢酸またはアセタルとも呼ばれる）は、半結晶の熱可塑性材料であり、その良好な機械的特性、高次元安定性、優れた滑りと摩耗の挙動を特徴としています。

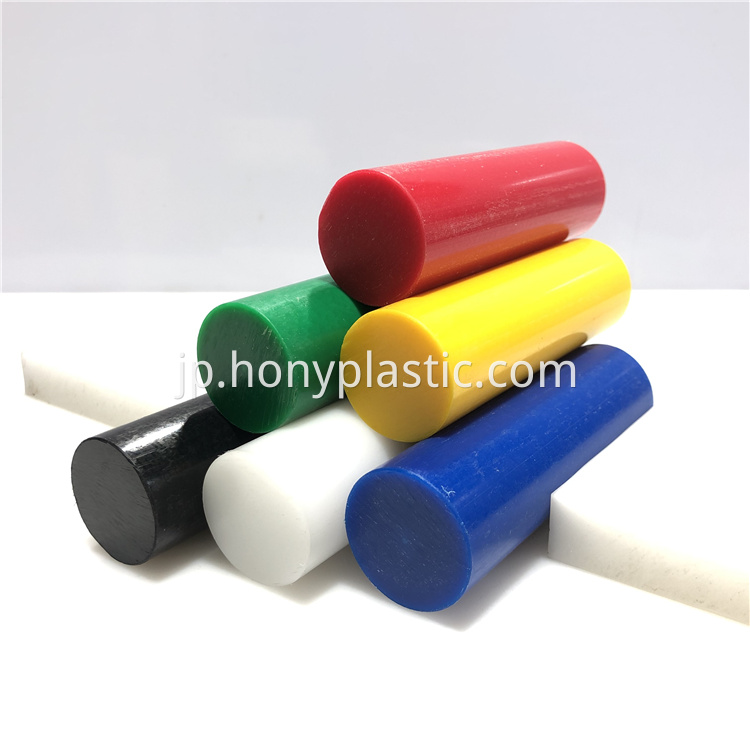

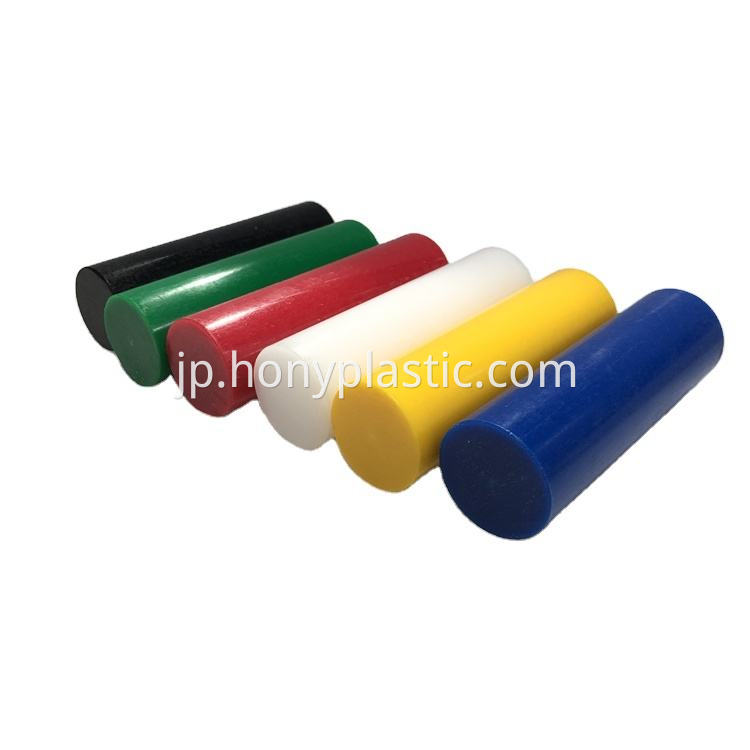

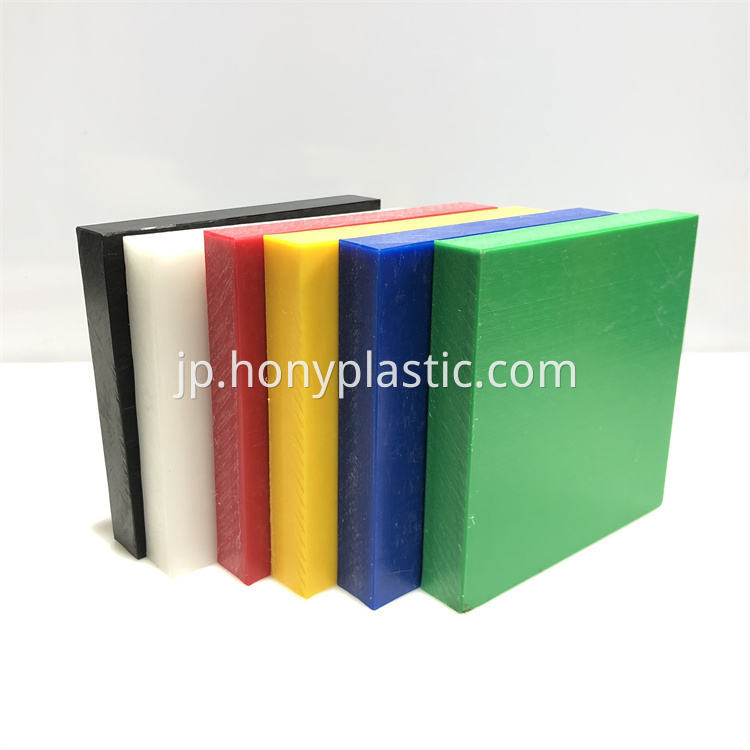

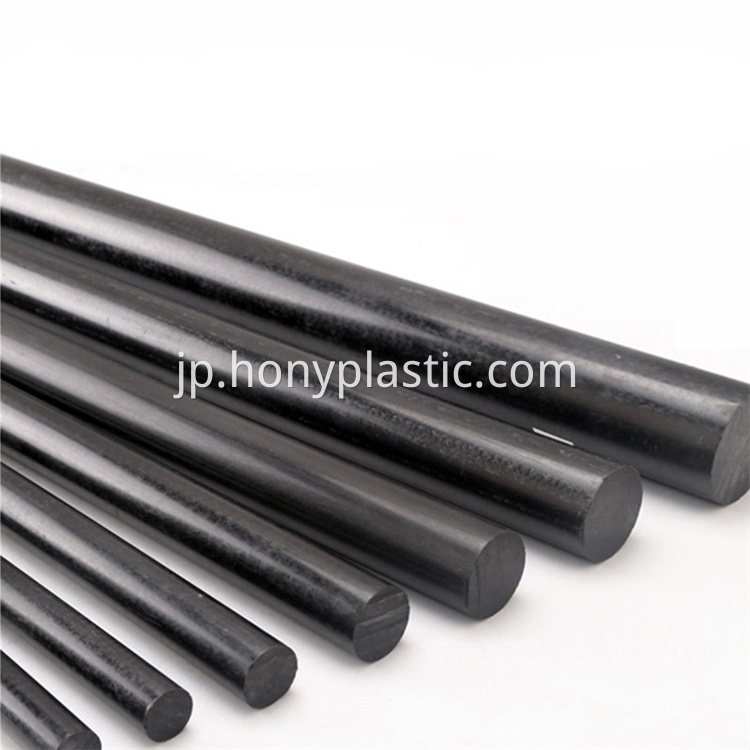

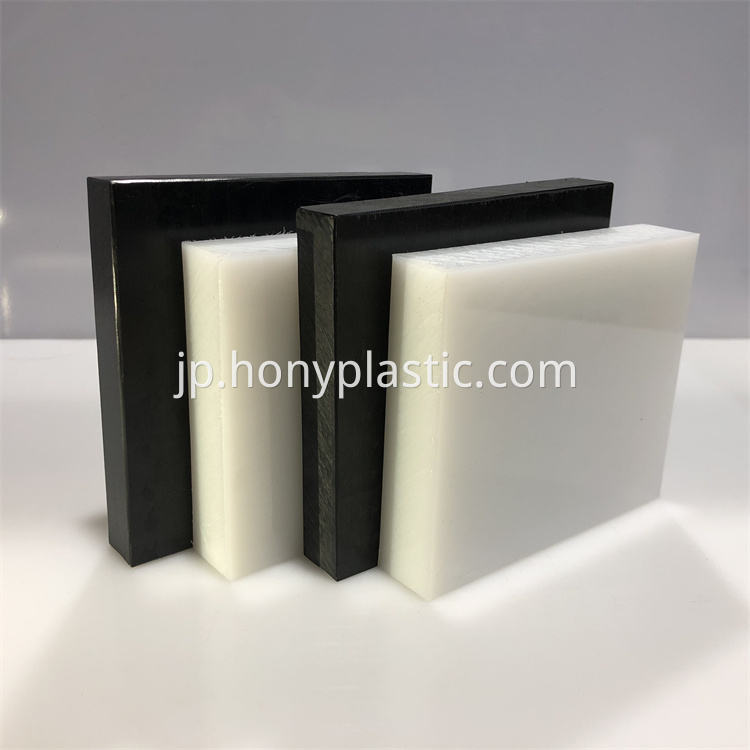

POMシートロッド酢酸標準サイズ、色、成績、タイプ
| Thickness (mm) | Width × Length (mm) |
| 0.3mm-200mm | 1000mm*2000mm/720mm*1200mm/620mm*1250mm |
酢酸シートと酢酸ロッド物理データシート：
| Item | POM plate |
| Type | extruded |
| Color | white |
| Proportion | 1.42g/cm3 |
| Heat resistance (continuous) | 115℃ |
| Heat resistance (short-term) | 140℃ |
| Melting point | 165℃ |
| Glass transition temperature | _ |
| Linear thermal expansion coefficient | 110×10-6 m/(m.k) |
| (average 23~100℃) | |
| Average 23--150℃ | 125×10-6 m/(m.k) |
| Flammability(UI94) | HB |
| Tensile modulus of elasticity | 3100MPa |
| Dipping into water at 23℃ for 24h | 0.2 |
| Dipping into water at 23℃ | 0.85 |
| Bending tensile stress/ Tensile stress off shock | 68/-Mpa |
| Breaking tensile strain | 0.35 |
| Compressive stress of normal strain-1%/2% | 19/35MPa |
| Pendulum gap impact test | 7 |
| Friction coefficient | 0.32 |
| Rockwell hardness | M84 |
| Dielectric strength | 20 |
| Volume resistance | 1014Ω×cm |
| Surface resistance | 1013 Ω |
| Relative dielectric constant-100HZ/1MHz | 3.8/3.8 |
| Critical tracking index(CTI) | 600 |
| Bonding capacity | + |
| Food contact | + |
| Acid resistance | + |
| Alkali resistance | + |
| Carbonated water resistance | + |
| Aromatic compound resistance | + |
| Ketone resistance |
+ |
