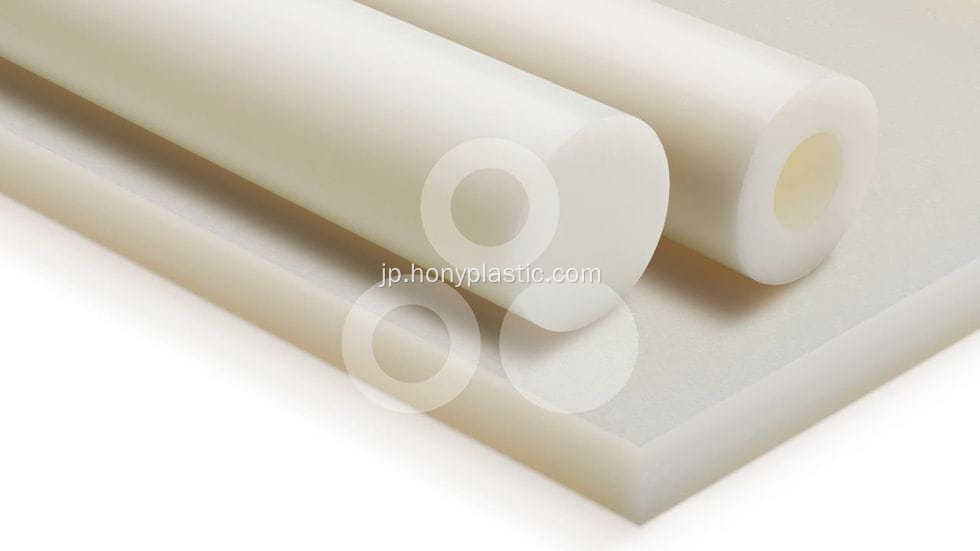

モデル: Ensinger Tecamid® 6/6 Nylon (PA66)
ブランド: Tecamid
| 販売単位 | : | Kilogram |
| パッケージ型式 | : | エクスポートパッケージ |
The file is encrypted. Please fill in the following information to continue accessing it
Tecamid®66Hi Naturalは、分子鎖の熱分解を減らす特別な添加物を備えたPA 66を特徴としています。その結果、標準のPA66タイプの能力と比較して、約59°Fのサービス温度を達成できます。 Tecamid®は、Ensingerの登録商標です。
ポリアミド66には、良好な剛性、硬度、耐摩耗性、熱寸法の安定性があります。さらに、ナイロン66には、優れた摩耗抵抗性と低摩擦特性があります。また、温度、化学物質、衝撃特性も非常に良好です。ユーザーは、寸法の安定性に影響を与える可能性のある水分を吸収するPA 66傾向に注意する必要があります。実際、PA 66は、鋳造PAタイプ6よりも飽和時に多くの湿気を吸収する傾向があります。電子機器、海洋、および自動車産業から、フォレストリー、建設、マイニングPA6Gシートロッドに至るまで、多様な用途で使用されています。
Tecamid®66の利点：
ナイロン6ナイロン66 Industries：
| DETAIL | |||
|---|---|---|---|
| Description | Value | ||
| Material Type | Semi-Crystalline Thermoplastic | ||
| Chemical Name | PA Polyamide Type 6/6 | ||
| Trade Name | TECAMID® 66 | ||
| Additives | Unfilled | ||
| Color | Natural | ||
| Manufacturer | Ensinger | ||
| PHYSICAL | |||
| Property | Test | Unit of Measure | Value |
| Density | ASTM D792 | g/cm³ | 1.14 |
| ASTM D792 | lb/in³ | 0.041 | |
| Water Absorption, 24 hrs, Immersion | ASTM D570 | % by wt. | 1.2 |
| Water Absorption, Saturation, Immersion | ASTM D570 | % by wt. | 8.5 |
| MECHANICAL | |||
| Property | Test | Unit of Measure | Value |
| Tensile Strength | ASTM D638 | psi | 12000 |
| Tensile Modulus | ASTM D638 | psi | 350000 |
| Tensile Elongation at Break | ASTM D638 | % | 25 |
| Flexural Strength | ASTM D790 | psi | 15500 |
| Flexural Modulus | ASTM D790 | psi | 440000 |
| Compressive Modulus | ASTM D695 | psi | 392000 |
| Hardness | ASTM D785 | NA | Rockwell M90 |
| IZOD Impact-Notched | ASTM D256 | ft-lb/in | 1.1 |
| Dynamic Coefficient of Friction | Dynamic, 40 PSI, 50 FPM | NA | 0.26 |
| THERMAL | |||
| Property | Test | Unit of Measure | Value |
| Coefficient of Linear Thermal Expansion | ASTM D696 | x 10-5 in./in./°F | 4.5 |
| Heat Deflection Temp | ASTM D648 | °C at 264 psi | 90 |
| ASTM D648 | °F at 264 psi | 194 | |
| Melting Point Temp | ASTM D3418 | °C | 255 |
| ASTM D3418 | °F | 491 | |
| Max Continuous Operating Temp | °C | 85 | |
| °F | 185 | ||
| Minimum Operating Temp | °C | -30 | |
| °F | -22 | ||
| Flammability Rating | UL94 | NA | V-2 |
| ELECTRICAL | |||
| Property | Test | Unit of Measure | Value |
| Dielectric Constant at 1 MHz | ASTM D150 | NA | 4 |
| Dissipation Factor at 1 MHz | ASTM D150 | NA | 0.01 |
| Surface Resistivity | ASTM D257 | ohm/square | 10^14 |
| COMPLIANCE | |||
| Description | Value | ||
| FDA | Yes | ||
| USDA | Yes | ||
| NSF | STD 61 | ||
| 3-A Dairy | Yes | ||
| Canadian Food Inspection Agency | No | ||
| USP Class VI | No | ||
| OTHER | |||
| Description | Value | ||
| ASTM Shape Spec | D5989 S-PA0111 (Only >0.062" Thickness) | ||
| Relative Cost | $$$ | ||
| Machinability | 1 | ||
